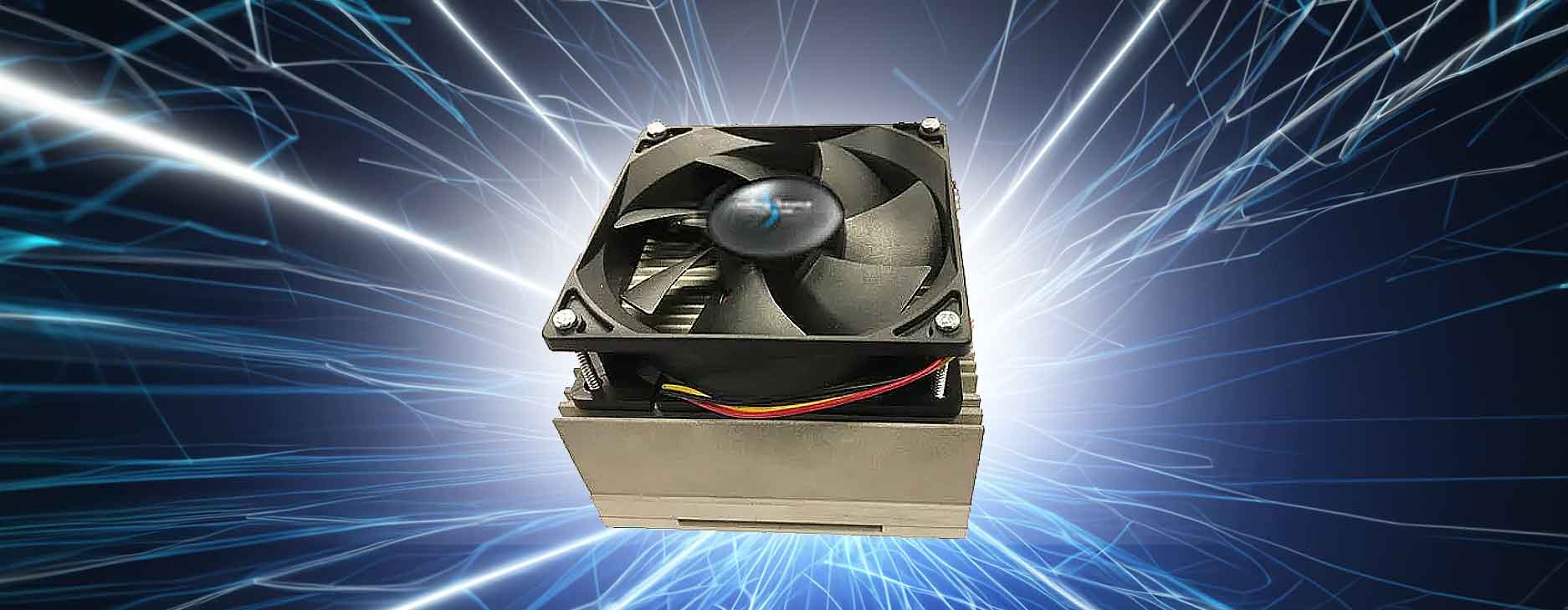

What is a TEC Heatsink?

A TEC heatsink is a thermal solution designed to work with a Thermoelectric Cooler (TEC)—also known as a Peltier module. When powered, a TEC pumps heat from its cold side to its hot side. The heatsink (often with a fan, heat pipes, or liquid cooling) is mounted on the hot side to efficiently reject that heat to ambient. Proper heatsink selection is critical; inadequate heat rejection drastically reduces cooling capacity and efficiency.

Capabilities

• Active cooling below ambient: Can achieve temperatures below room temperature (ΔT up to ~60–70 °C under ideal conditions).
• Precise temperature control: Fast response and fine control using closed-loop PID controllers.
• Bidirectional operation: Reversing current allows heating or cooling with the same device.
• Compact form factor: Enables spot cooling in tight spaces where compressors are impractical.
• Scalable designs: From small fin/fan sinks to heat-pipe or liquid-cooled cold plates for higher loads.

Benefits

Performance & Control

• No moving parts in the TEC itself → silent, vibration-free at the module level
• Instantaneous control for stabilization, set-point holding, and rapid cycling
• Ideal for sensitive electronics and optics requiring tight temperature stability

Design & Integration

• Solid-state reliability (long service life when properly derated)
• Works in any orientation
• Clean operation—no refrigerants or compressors

System Flexibility

• Heatsinks can be optimized for air cooling, forced convection, or liquid cooling
• Modular stacking for higher ΔT or capacity (with efficiency trade-offs)

Key Design Considerations (Critical)

• Hot-side heat rejection: The heatsink must dissipate (load heat + TEC electrical power).
• Thermal resistance (θSA): Lower is better; undersizing the heatsink quickly collapses ΔT.
• Condensation management: Sub-ambient operation may require sealing, insulation, or conformal coating.
• Power efficiency: TECs are less efficient than vapor-compression; expect higher power draw.
• Mechanical flatness & TIM: Even pressure and high-quality TIM are essential for performance.

Typical TEC Heatsink Types

• Extruded fin + fan: Compact, cost-effective for low–moderate loads
• Heat-pipe assisted heatsinks: Improved spreading and lower θSA
• Liquid-cooled cold plates: For high heat flux or quiet operation
• Integrated TEC modules: Factory-assembled stacks with matched heatsinks and controls

Applications

• Optoelectronics: Laser diodes, photodetectors, optical sensors
• Medical & life sciences: Diagnostics, lab instruments, sample cooling
• Industrial & metrology: Precision measurement, calibration equipment
• Telecom & RF: Frequency stabilization, low-noise electronics
• Consumer & specialty electronics: CCD/CMOS camera cooling, niche enclosures
• Aerospace & defense: Ruggedized electronics requiring tight thermal control

When to Choose a TEC Heatsink

Choose a TEC-based solution when you need:

• Temperature below ambient or very tight control (±0.1–0.5 °C)
• Compact, solid-state cooling without compressors
• Rapid thermal response and bidirectional heating/cooling

Avoid TECs when:

• Energy efficiency is critical
• Heat loads are very high without space for a large or liquid-cooled heatsink

If you want, Cooling Source can help size a TEC and heatsink for your exact heat load and ambient, compare air vs liquid cooling, or provide design rules (θ targets, insulation, condensation control).
