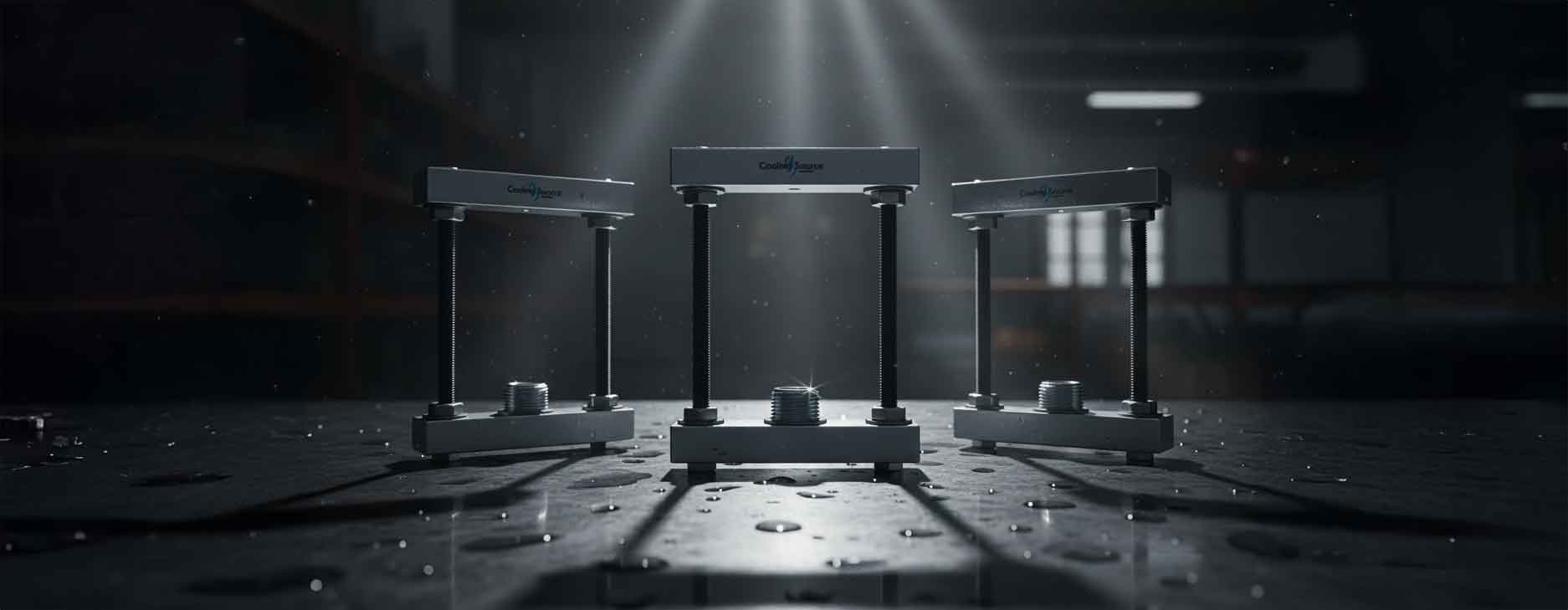

What is a Bar Clamp for IGBT Modules?

A bar clamp is a mechanical clamping system—typically a rigid metal bar with spring elements (disc springs/Belleville washers)—used to apply uniform, controlled pressure across one or multiple IGBT power modules.
Unlike screw-only mounting, bar clamps maintain stable force over time and temperature cycling.

Capabilities

1. Controlled & Uniform Clamping Force

• Applies precise, evenly distributed pressure across the IGBT baseplate
• Prevents localized stress concentrations
• Maintains consistent contact with the heatsink or cold plate

2. Compensation for Thermal Expansion

• Spring elements automatically adjust for:
  • Aluminum ↔ copper expansion mismatch
  • Temperature cycling (power on/off)
• Prevents loss of contact pressure over time

3. Multi-Module Clamping

• One bar clamp can secure multiple IGBT modules simultaneously
• Ensures identical pressure on all modules in a phase leg or inverter section

4. Vibration & Shock Resistance

• Ideal for high-vibration environments
• Maintains force under mechanical shock (vehicles, rail, industrial drives)

5. Fast Assembly & Repeatability

• Reduces assembly variability vs. torque-only screw mounting
• Simplifies field replacement and serviceability

Benefits

Improved Thermal Performance

• Uniform pressure → lower thermal interface resistance
• Better heat transfer to heatsink or liquid cold plate
• Reduced hot spots on the IGBT baseplate

Increased Module Reliability & Lifetime

• Prevents:
  • Baseplate warping
  • Solder fatigue
  • Ceramic substrate cracking
• Extends power cycling life

Reduced Risk of Over- or Under-Torquing

• Eliminates dependence on precise screw torque alone
• Spring system self-regulates force over time

Consistent Electrical Performance

• Stable thermal behavior leads to:
  • Predictable junction temperatures
  • Reduced drift in switching characteristics
  • Improved long-term efficiency

Compact, Clean Mechanical Integration

• Lower profile than multiple fasteners
• Clean, professional industrial appearance

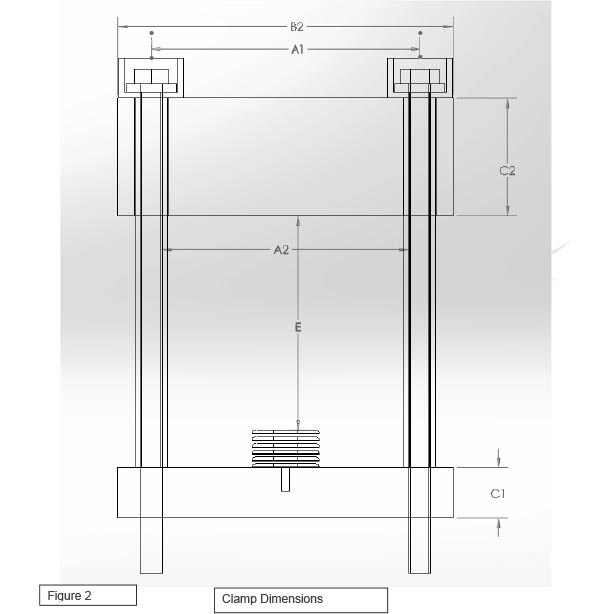

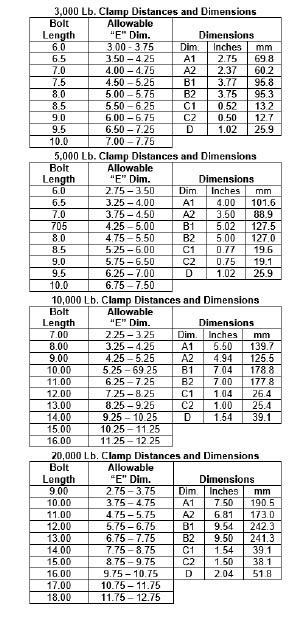

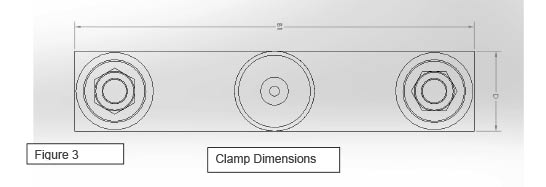

Typical Materials & Design Options

• Clamp bar: Stainless steel, anodized aluminum, or plated steel
• Spring system: Belleville (disc) springs or wave springs
• Fasteners: High-strength steel (often insulated if required)
• Interfaces: Compatible with TIMs, phase-change materials, or thermal grease

Applications

Power Electronics

• IGBT modules
• SiC MOSFET modules
• Power diode modules

Industries

• EV & Hybrid Vehicles
  • Traction inverters
  • On-board chargers
• Rail & Transportation
  • Traction drives
  • Auxiliary power units
• Renewable Energy
  • Solar inverters
  • Wind power converters
• Industrial Drives
  • Motor drives
  • VFDs
• Energy Storage Systems
  • Battery inverters
  • Grid-tied converters
• Defense & Aerospace
  • Ruggedized power electronics
  • High-reliability systems

When to Use a Bar Clamp (vs. Screw Mounting)

Choose a bar clamp when you need:

• High reliability under thermal cycling
• Multi-module uniform pressure
• Long service life with minimal maintenance
• Vibration resistance
• Predictable, repeatable assembly quality
